0.5” GTI Zero Void® Stressing-End

0.5” GTI Zero Void® Stressing-End
0.5” GTI Zero Void® Stressing-End

The GTI Zero Void® System eliminates the need to fill sleeves (tubes) at stressing-ends with grease as required by ACI and PTI Guide Specifications. The Zero Void® System uses seals to provide thermal tolerance for shrinkage of the sheathing and watertight sealing of the encapsulation.

The GTI Zero Void® Stressing-End utilizes the GTI Plasma Cutter or GTI PocketShear® to cut tendon tails after stressing. The GTI Plasma Cutter generates a minimal amount of heat during cutting and has no effect on the heat treatment of strand or wedges compared to using oxyacetylene torch cutting. Additionally, the GTI Plasma Cutter and GTI PocketShear® quickly cut the tendon tail to a precise length, unlike other methods.

The GTI Nail-Less Pocket Former is designed to eliminate the use of nails to fasten the stressing anchor to the edge form thus eliminating staining of the concrete surface.

The GTI GROUT-LOCK™ Pocket Former, consisting of a pocket former with a lock ring that can be used with the GTI Zero Void® System, is a unique concept to improve the quality and longevity of post-tensioning tendons by providing a mechanical bond that holds the grout plug tightly in place against the surrounding concrete even in less than ideal conditions where the stressing pocket is wet, dirty, covered with grease, or torch residue. The GTI GROUT-LOCK™ Ring has an interior concave surface creating a shear key and slides into position on the GTI GROUT-LOCK™ Pocket Former holding it in place.

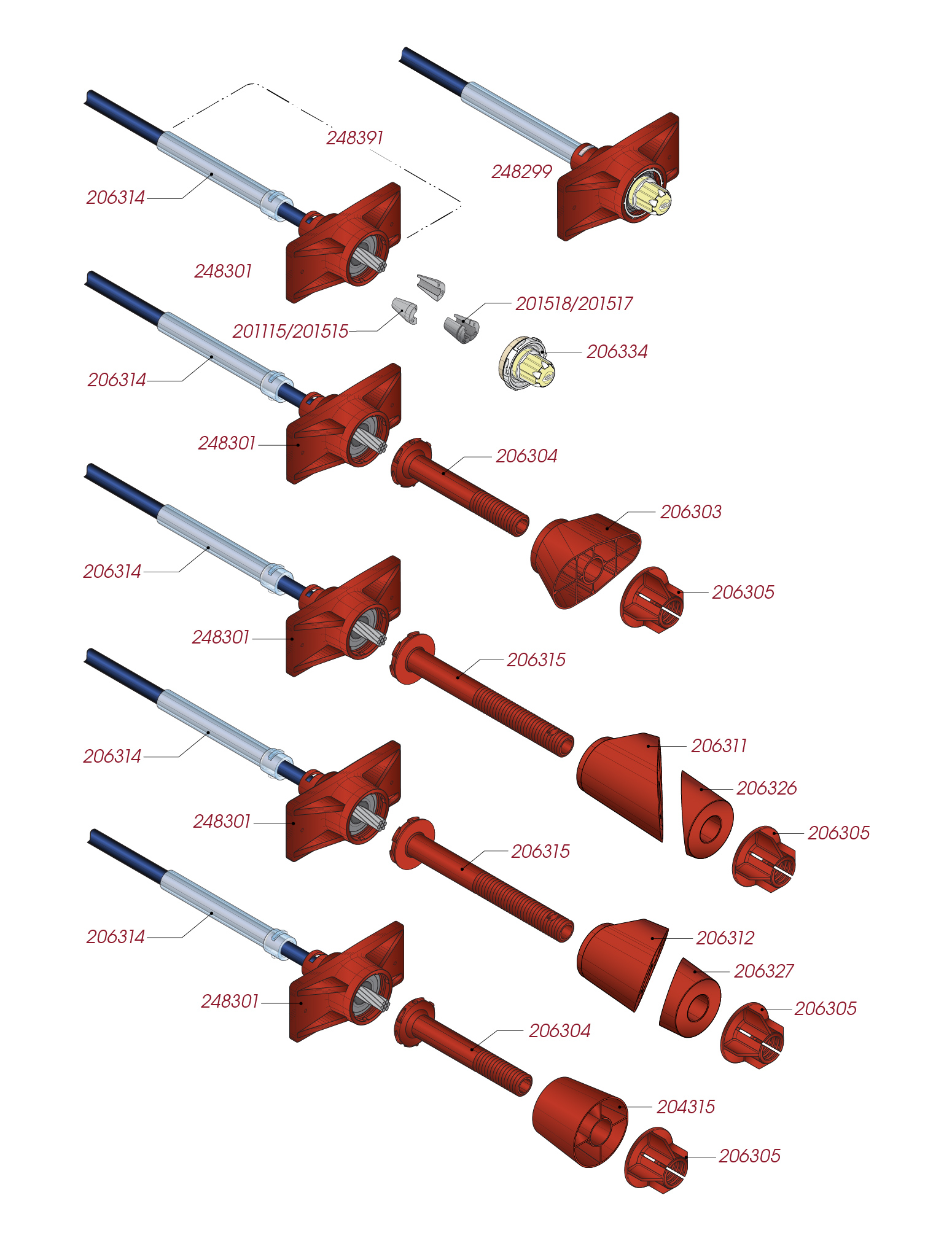

0.5" ZERO VOID STRESSING-END
246299.5" ZERO VOID ENCAPSULATION SET, L.E., SM1-05, including
246391.5" ZERO VOID ENCAPSULATION & SEAL, SM1-05
246301.5" ZERO VOID ENCAPSULATION, SM1-05
206314.5" ZERO VOID SEAL, 6", TRANSPARENT
206334.5" ZERO VOID CAP, LE W/GREASE
FOR WEDGE PART NUMBER SEE WEDGE TABLE
0.5" ZERO VOID STRESSING-END POCKET FORMERS (NAIL-LESS SYSTEM)
206303.5" ZERO VOID POCKET FORMER, 2", PLASMA
206311.5" ZERO VOID POCKET FORMER 45 DEG, PLASMA
206326.5" Z-VOID POCKET FORMER 45 DEG, NUT SPACER
206312.5" ZERO VOID POCKET FORMER 30 DEG, PLASMA
206327.5" Z-VOID POCKET FORMER 30 DEG, NUT SPACER
204315POCKET FORMER, 5ZV, PS, NO SHANK
204316POCKET FORMER, 5ZV, PS, 30 DEG, NO SHANK
206327.5" Z-VOID POCKET FORMER 30 DEG, NUT SPACER
204317POCKET FORMER, 5ZV, PS, 45 DEG, NO SHANK
206326.5" Z-VOID POCKET FORMER 45 DEG, NUT SPACER
Note: the above pocket formers require a mandrel and nut.
206304.5" ZERO VOID FORMER, MANDREL
206315.5" Z-VOID POCKET FORMER, MANDREL, LONG
206305.5" Z-VOID POCKET FORMER, NUT

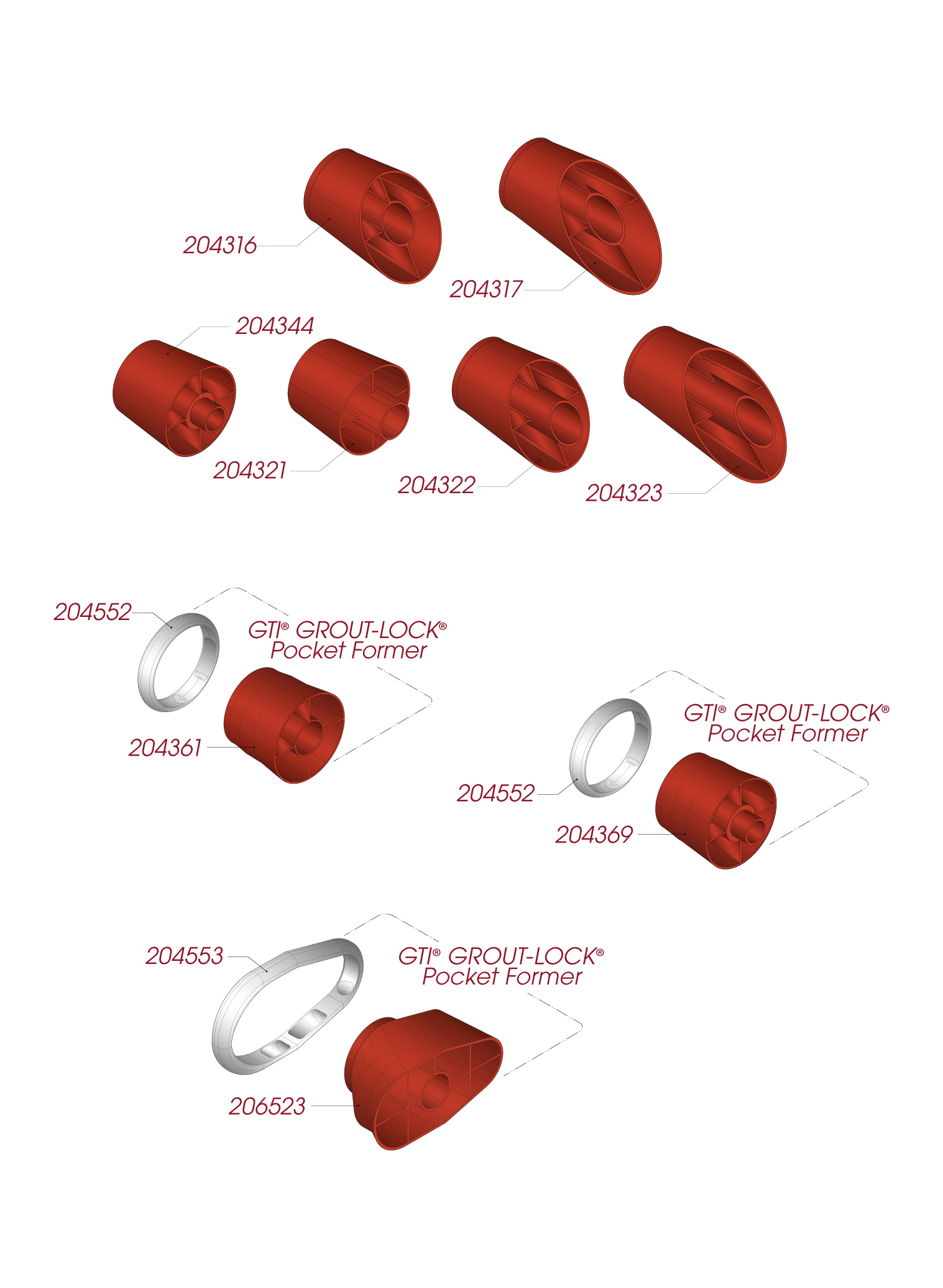

0.5" ZERO-VOID STRESSING-END POCKET FORMERS
204344POCKET FORMER, 5ZV, PS, 7/8" SHANK
204321POCKET FORMER, 5ZV, PS, SHANK
204322POCKET FORMER, 5ZV, PS, 30 DEG, SHANK
204323POCKET FORMER, 5ZV, PS, 45 DEG, SHANK
0.5" ZERO-VOID STRESSING-END POCKET FORMERS (GROUT-LOCK™)
204361POCKET FORMER, 5ZV, NO SHANK, GROUT LOCK
204369POCKET FORMER, 5ZV, PS, 7/8" SHANK, GROUT LOCK
204552204552 POCKET FORMER, GROUT-LOCK RING
206503.5" Z-VOID POCKET FORMER, 2", GROUT LOCK, PLASMA
204553POCKET FORMER, GROUT LOCK RING, PLASMA
WEDGE TABLE
GTI Zero Void Anchorage Kits are sold with a variety of wedge types based on customer preference. See table below to determine/identify wedge type.
A201115WEDGE, 2 PIECE. .5", 1.2" LONG
B201515GTI S1-05 2-PIECE WEDGE, 1.2" LONG
C201518GTI S1-05 2-PIECE WEDGE, W/CLIP
D201517GTI S1-05 2 PIECE WEDGE, W/CLIP, SMOOTH
